Hikvision DS-KAS541 Touch‑Free Face Recognition Terminal Kit – 4.3″ Touchscreen, Magnetic Lock & RFID Card

The Hikvision DS‑KAS541 Face Recognition Terminal Kit delivers a touch-free single-door access control solution, combining fast AI-powered biometric authentication with secure lock hardware and RFID accessories.

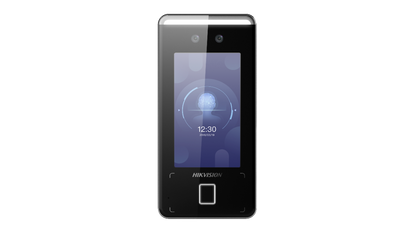

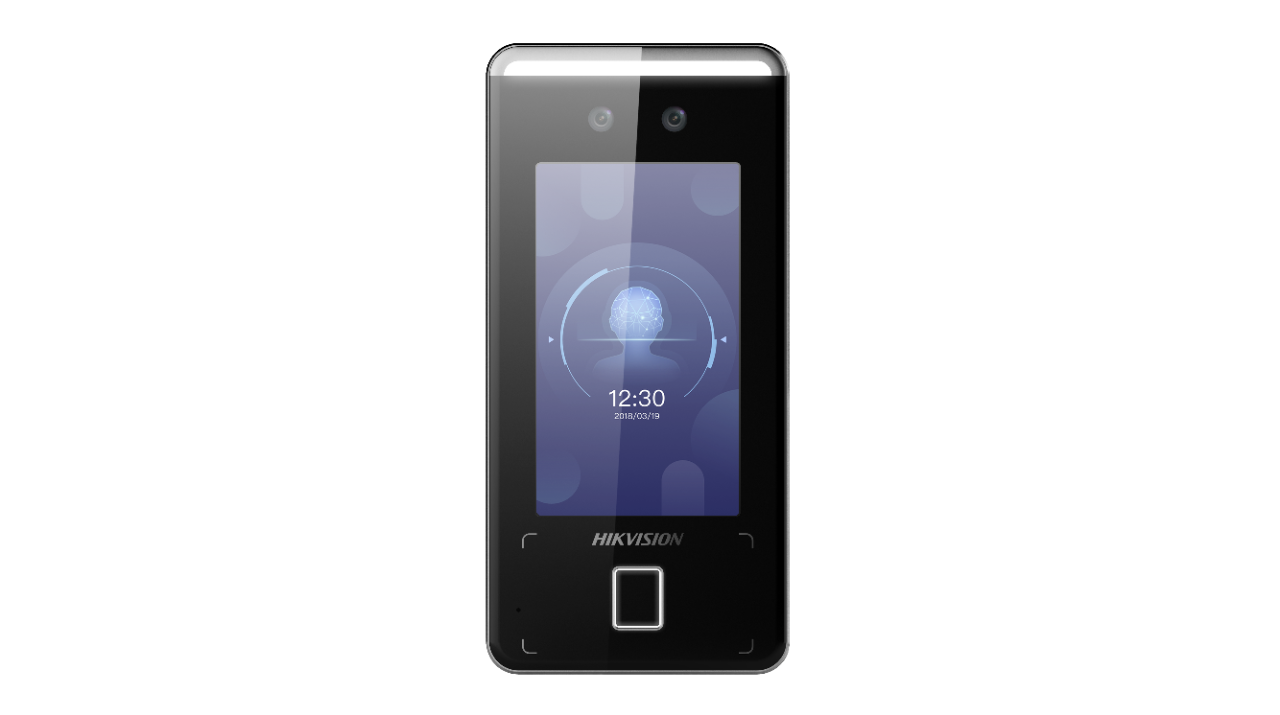

🔸 Terminal – DS-K1T341CMF

• 4.3″ capacitive touch LCD (480 × 800 resolution)
• Deep learning multi-biometric recognition: face, fingerprint*, card, QR code
• Dual-lens 2 MP camera; recognition distance 0.3–1.5 m, < 0.2 s/user, ≥99% accuracy
• Supports mask detection, anti-spoofing & time synchronization
• Capacity: 1,500 faces, 1,500 fingerprints, 1,500 card templates, 150,000 events
• Interfaces: RS‑485, Wiegand, USB, exit button, door contact, tamper input
• Power: 12 VDC, 2 A; Operating temperature: –30 °C to 60 °C; IP65 rated

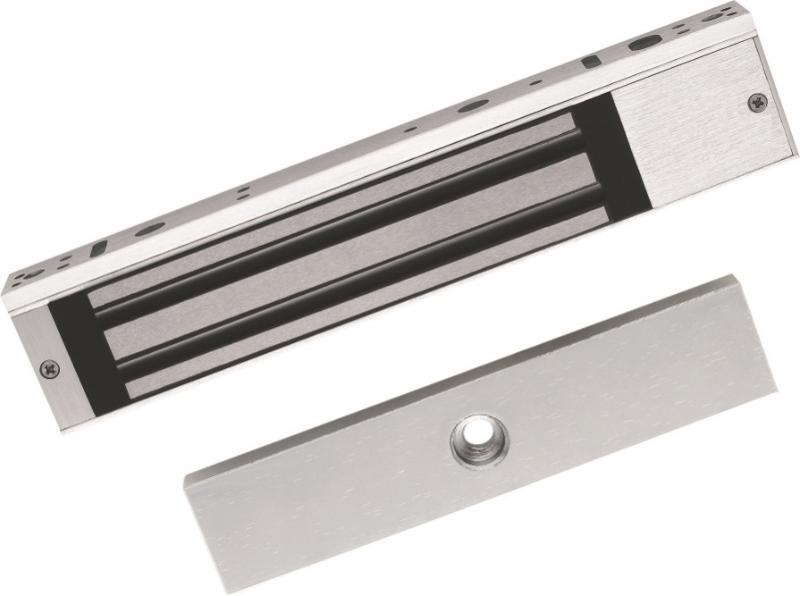

🔸 Magnetic Lock – DS-K4H258S with Bracket DS-K4H258-LZ

• Holding force: 280 kg (617 lb)
• Power: 12 VDC, 340 mA; anti-residual magnetism design
• Compatible with wooden, glass, metal, and fireproof doors

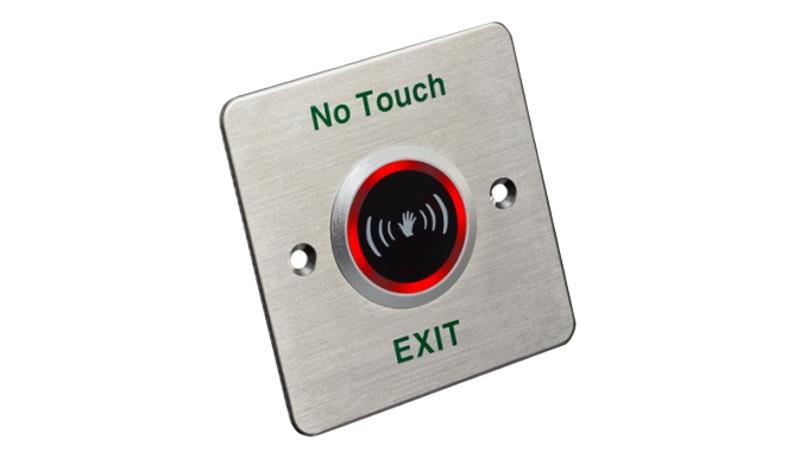

🔸 Exit Button – DS-K7P03

• Touch-free stainless steel exit button (40–120 mm detection range)
• LED status indicator; current rating: 1 A @ 30 VDC

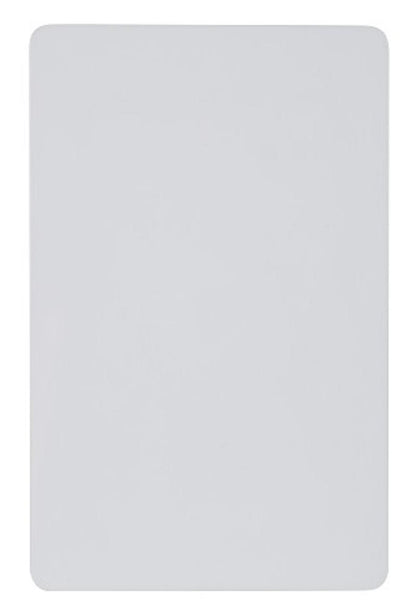

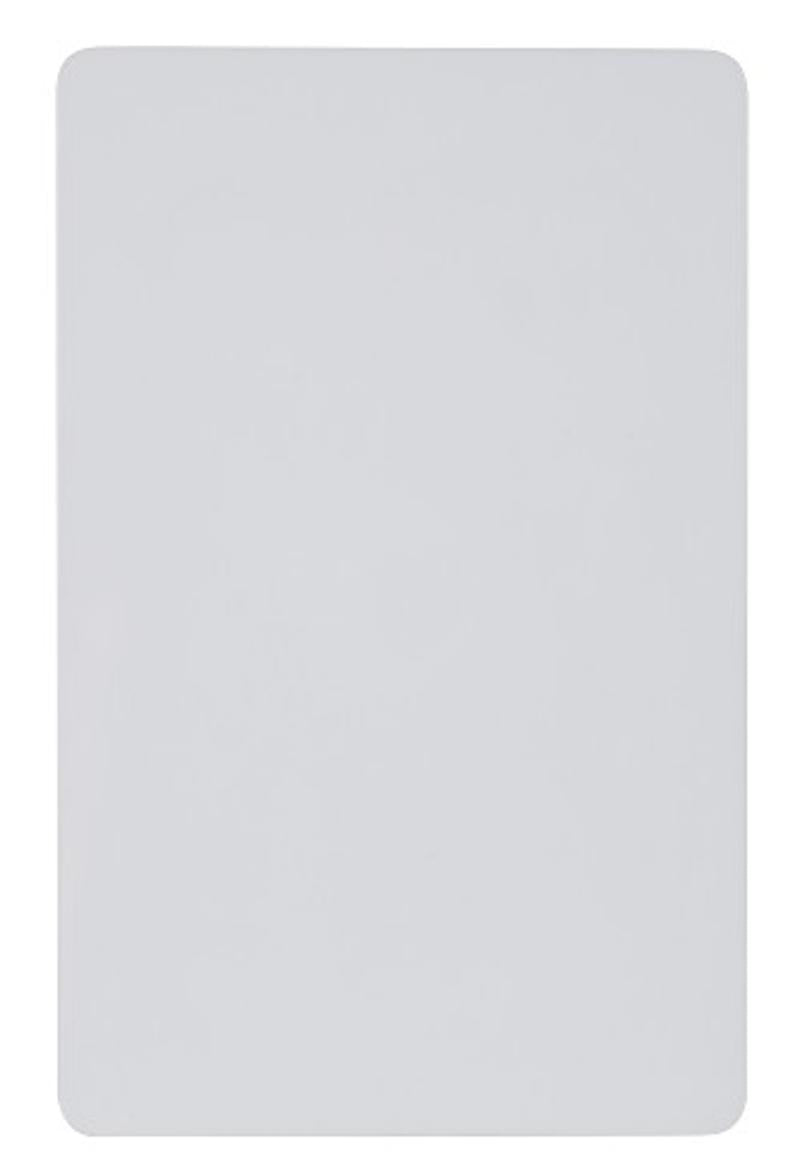

🔸 Access Card – FM11RF08-M1

• M1 contactless RFID card (13.56 MHz, ≤ 10 cm reading distance)

This all-in-one kit is built for **high-traffic environments** like offices, clinics, and institutional buildings. It enables hygienic, fast, and secure access control with remote door release and event logging via Hik-Connect and ISAPI/ISUP protocols.
