Wireless Intrusion Alarm AX-PRO DS-PWA64-L-WE
Wireless Intrusion Alarm AX-PRO DS-PWA64-L-WE
Couldn't load pickup availability
Delivering comprehensive security in one compact package, the Hikvision DS‑PWA64‑Kit‑WB is part of the trusted AX PRO line. Operating over 868 MHz, this kit features the DS‑PWA64‑L‑WB wireless control panel, plus a keyfob remote (DS‑PKF1‑WB), PIR motion detector (DS‑PDP15P‑EG2‑WB), and door/window contact sensor (DS‑PDMC‑EG2‑WB). Ideal for homes, small businesses, and retail environments, it supports up to 64 zones (including 48 PIRCAMs) with AES-128 encrypted two‑way communication using the Tri-X wireless protocol.
The control panel enables connectivity via Wi‑Fi, TCP/IP, GPRS/3G/4G, and can be managed through Hik‑Connect, Hik‑ProConnect, web portal, IVMS‑4200, or Convergence Cloud platforms. With support for up to 32 keyfobs, 8 tag readers/keypads, 4 wireless sounders, and 2 repeaters, it allows easy expansion to meet growing security demands

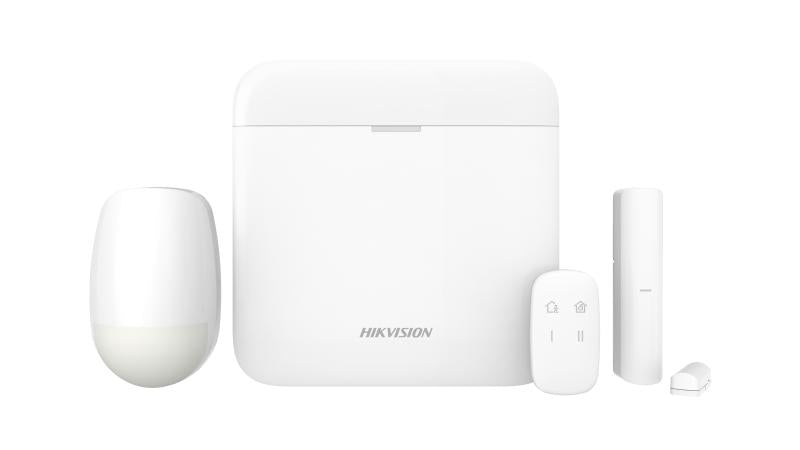

AX PRO Kit (868MHz) (Inside the Box)

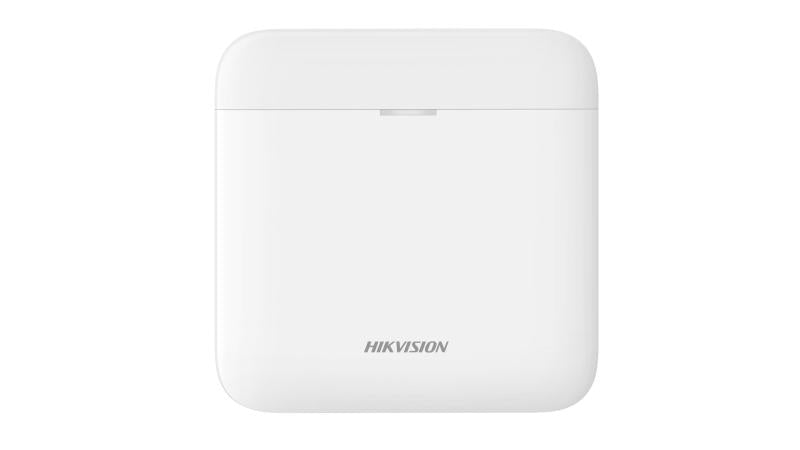

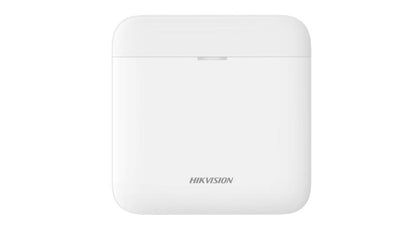

- 1 × DS‑PWA64‑L‑WB wireless control panel

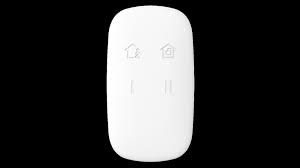

- 1 × DS‑PKF1‑WB wireless keyfob remote

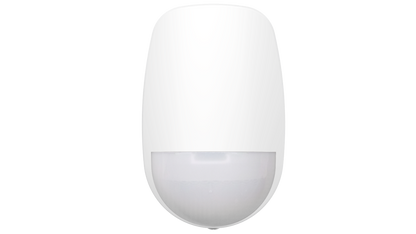

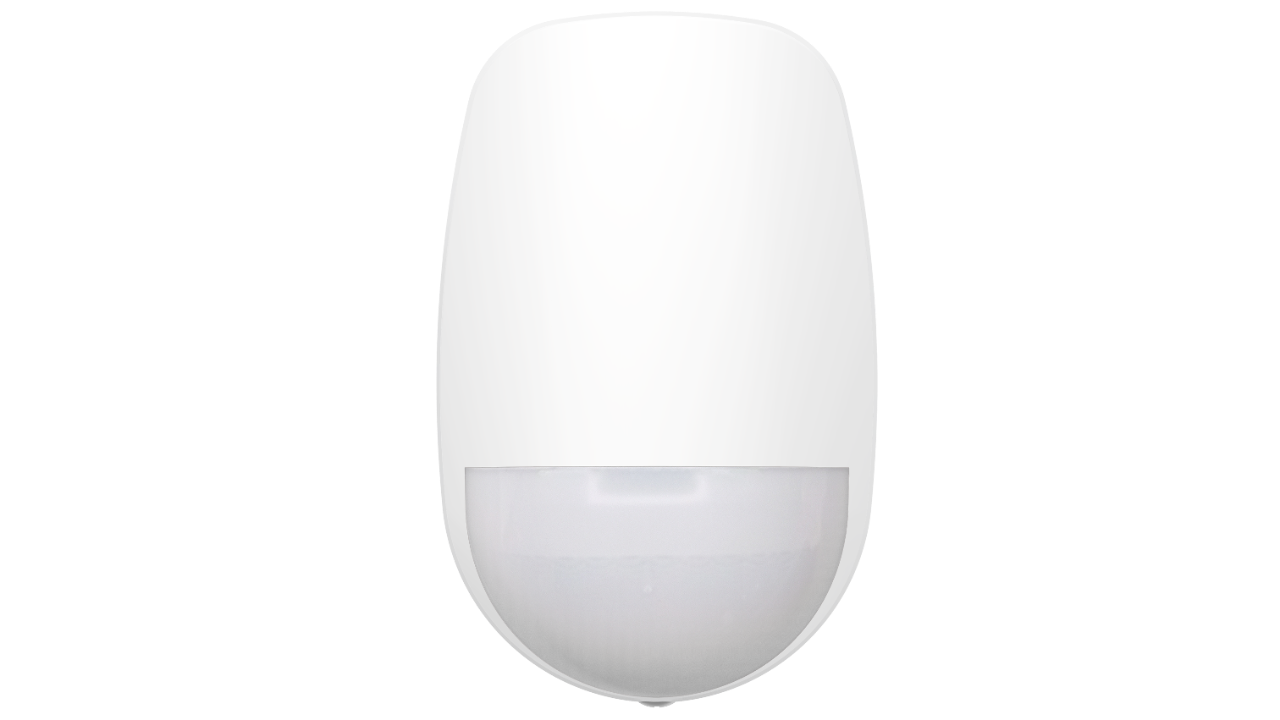

- 1 × DS‑PDP15P‑EG2‑WB wireless PIR motion detector

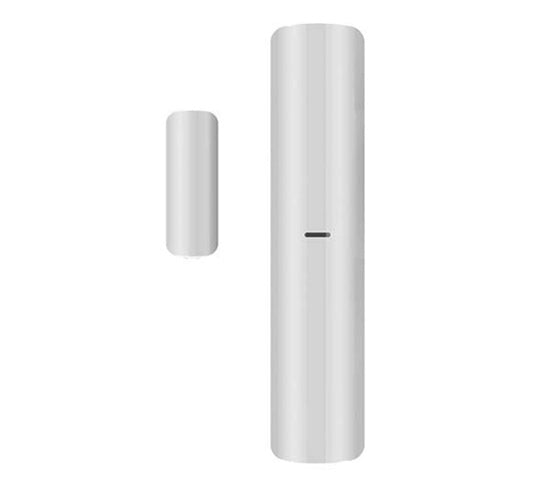

- 1 × DS‑PDMC‑EG2‑WB wireless magnetic contact sensor (door/window sensor)
These four core devices make up the complete kit. The kit provides out‑of‑the‑box functionality suitable for small‑scale installations
Key Highlights
- TCP/IP, Wi-Fi, and GPRS network
- New generation wireless protocol: Tri-X/Cam-X
- Long RF transmission distance
- Two-way communication with AES-128 encryption
- Connects up to 64 wireless zones/outputs (including 48 PIRCAMs), 32 wireless keyfobs, 2 repeaters, 4 sounders(2 internal+2 external), 8 tag readers and keypads.
- Supports up to 32 network users, including 1 installer, 1 administrator, and 30 normal users
- Voice prompt
- Configuration via Web client, mobile client, and Convergence Cloud
- Hik-Connect and Hik-ProConnect configuration depends on the user access level
- Pushes alarm notification via messages or phone calls
- Views live videos from Hik-Connect
- Alarm video clips via emails and APP
- Supports LED indicator to indicates system status
- 4520 mAh lithium backup battery
- SIA-DC09 protocol, and supports both Contact ID and SIA data format
- Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication
Protect your property confidently with the Hikvision DS‑PWA64‑L‑WE, the wireless alarm panel that offers seamless integration, advanced encryption, and smart notification features for enhanced security.
